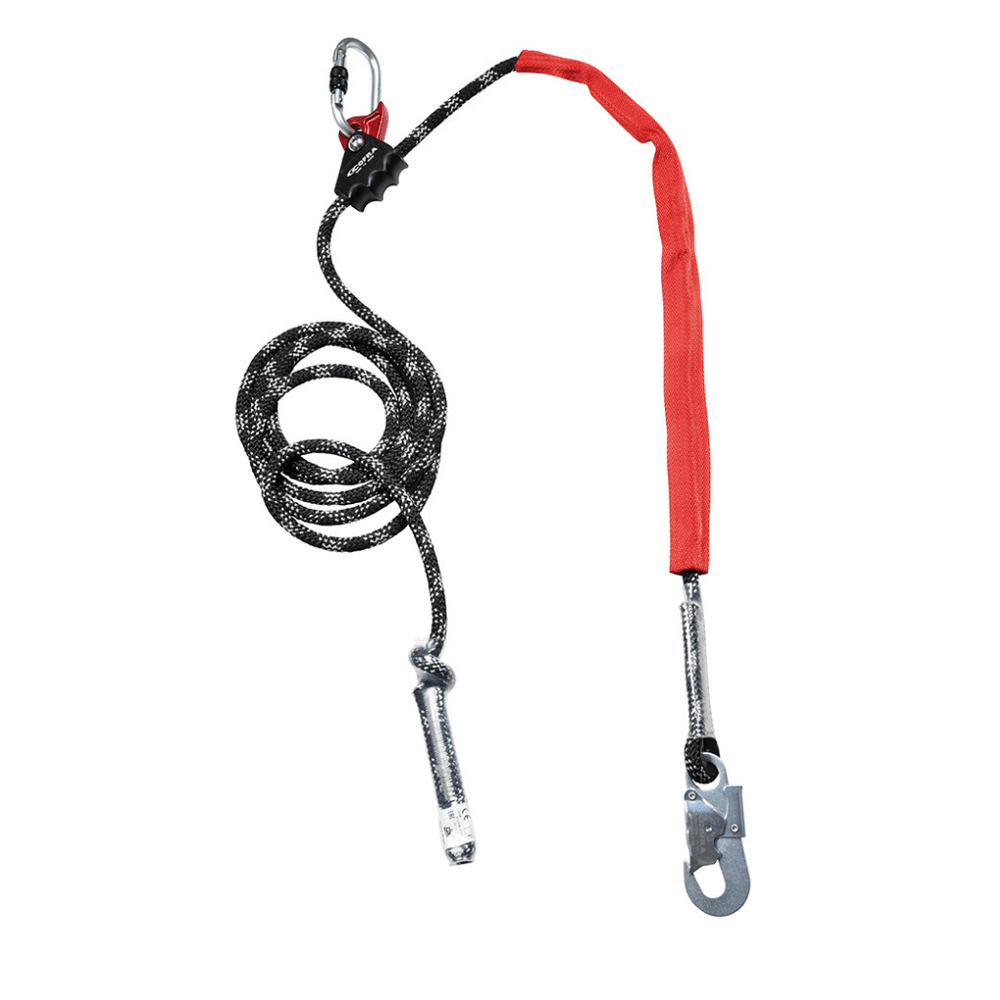

MYGRAB 4M

DESCRIPTION:

• Restraint and work positioning lanyard certified with a mass of 150 kg
• Aluminium length adjuster, with an ergonomic lever and automatic locking system
• Steel connectors
• Rope with a diameter of 12 mm

PLUS:

EXTREME LOAD 150 KG

The additional test certifies the resistance of Cofra devices against a maximum nominal load of 150 kg, compared with the 100 kg resistance of the normal devices on the market.

STANDARD: EN358:2018

LENGTH:

• MAX LENGTH: 10.0 m
• MIN LENGTH: 0.6 m

WEIGHT: 1720 g

PACKAGING: Singles

BASE CONNECTOR:

• LOCKING SYSTEM: SCREW - Screw lock
• MATERIAL: Zinc-plated steel
• MINIMUM RESISTANCE: 25 kN
• OPENING: 18 mm
• STANDARD: EN 362

END CONNECTOR:

• MATERIAL: Zinc-plated steel
• MINIMUM RESISTANCE: 23 kN
• OPENING: 19 mm
• STANDARD: EN 362
• LOCKING SYSTEM: Back safety lever

ROPE:

• DIAMETER: 12 mm
• MATERIAL: Polyester
• STRUCTURE: Kernmantle

ADJUSTER:

• ADJUSTMENT: Sliding ergonomic
• MATERIAL: Aluminium

MATERIALS AND TECHNOLOGIES:

STEEL COMPONENTS

Steel perfectly resists the considerable stresses which develop during a fall. All steel components have undergone anticorrosive galvanisation treatment with zinc or chrome.

ALUMINIUM COMPONENTS

Alumiumum is a very light metal offering the same mechanical performance as steel. It resists the considerable stresses which develop during a fall. All aluminum components have undergone anti-corrosive anodization treatment.

KERNMANTLE ROPE

The static rope with kernmantle weave is characterised by a composite structure comprising a stress-resistant inner kern and an outer mantle to protect the kern from abrasion, UV rays, weather conditions, oil, fire and heat. In addition, the mantle acts as a visible indicator of the rope’s wear.

SCREW LOCK

The Screw Lock is the simplest locking mechanism while maintaining a high level of safety.
